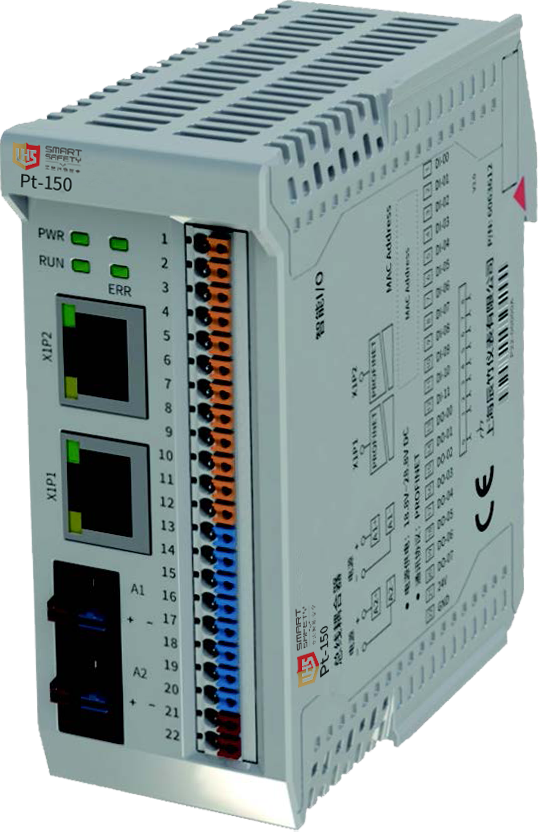

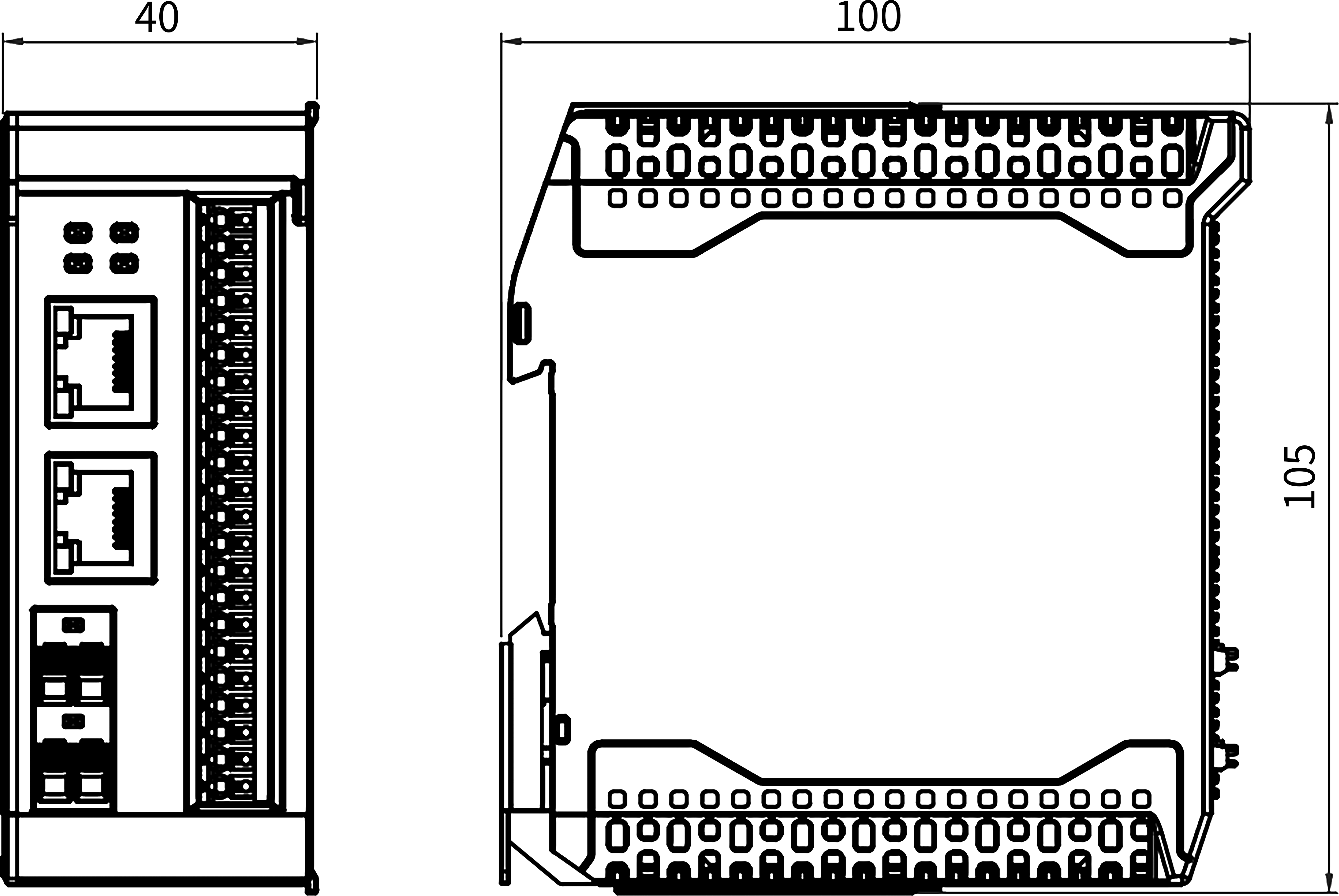

 | ? Product integrated power supply, 12-way switch input and 8-way switch output. ? Can dock with standard third-party Profinet master station equipment. ? Application of dual-port support ring network ? Additional 12 I/O cards can be expanded. ? Spring terminal connection ? The terminal is detachable. ? The expansion I/O card supports hot plug function. |
| ▊ | technical parameter |
Basic parameter | |
standard | IEC 61131-2 GB/T 15969.2-2008 |
Network port impulse voltage | 1500V (1.2/50 US) |
Insulation strength of mesh opening | 1000V AC, 50Hz, 1min |
EMS | refer to GTB 18268.1 (IEC 61326-1) |
Operating ambient temperature | -Test range from 20℃ to+60℃:-30℃ to+70℃ |
storage temperature | -40℃~+85℃ |
Using ambient humidity | 10~95%，Non-condensation |
Overall dimension (W/H/D) | 105mm×100mm×40mm |
Number of ports | 2 |
type | Ethernet (ProfiNet protocol) |
Data transmission rate | 10/100Mbit/s |
DI technical parameters | |
Output type | Leakage pattern TYPE1、TYPE3 |
port number | 12 |
input voltage | 24VDC |
Logic 1 signal (minimum) | 2mA, 11VD |
Logic 0 signal (max) | 1.5mA, 5VDC |
Cable length | 500 meters (shielded); 300 meters (Unshielded) |
Input filtering time | 無、10ms、30ms、100ms (User-configurable） |
Input delay | <1ms (Filter time setting None) |
DO technical parameter | |
Output type | Transistor (PNP, 24V source output) |
port number | 8 |
Output current per channel | <500mA, With short circuit protection |
Cable length | 500 meters (shielded); 150m (unshielded） |
Switching delay | The maximum length from disconnection to connection is 100us. The longest disconnection of the connecting channel is 200us. |
 | |
| ▊ | Product structure diagram |
 |
| ▊ | Wiring diagram |
 |  |
| ▊ | Functional framework |
 |
